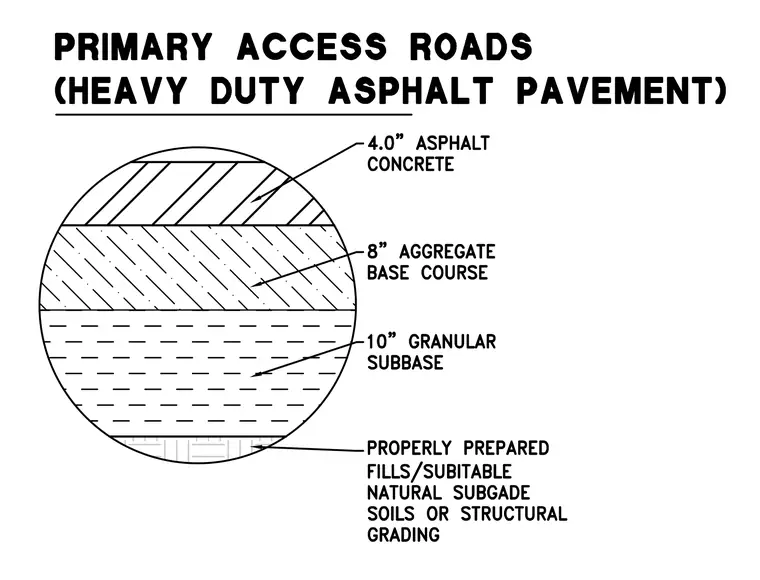

The pavement section consists of a 4.0-inch asphalt concrete surface course placed over an 8-inch aggregate base course. Below the base course lies a 10-inch granular subbase supported by properly prepared fills, suitable natural subgrade soils, or structural grading.
