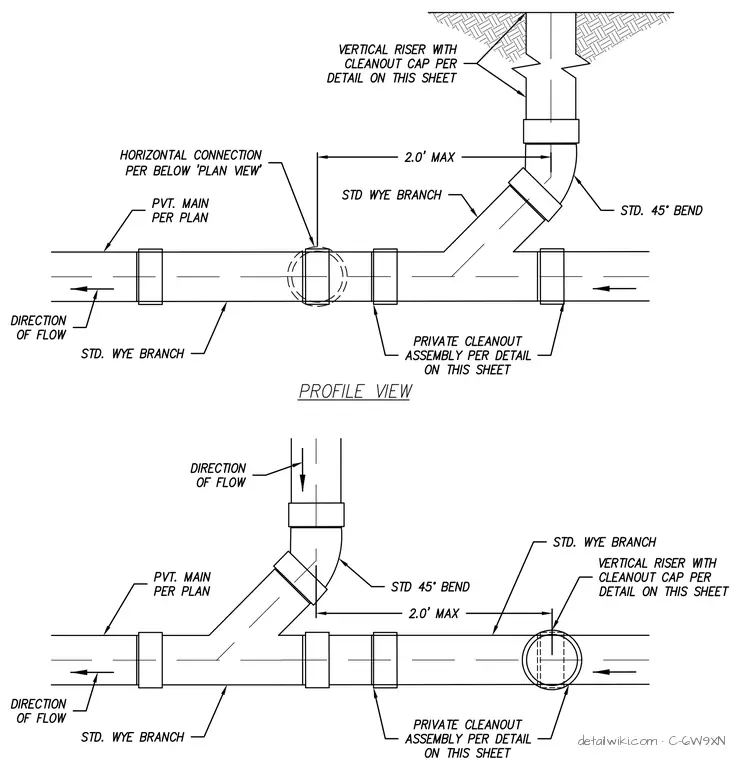

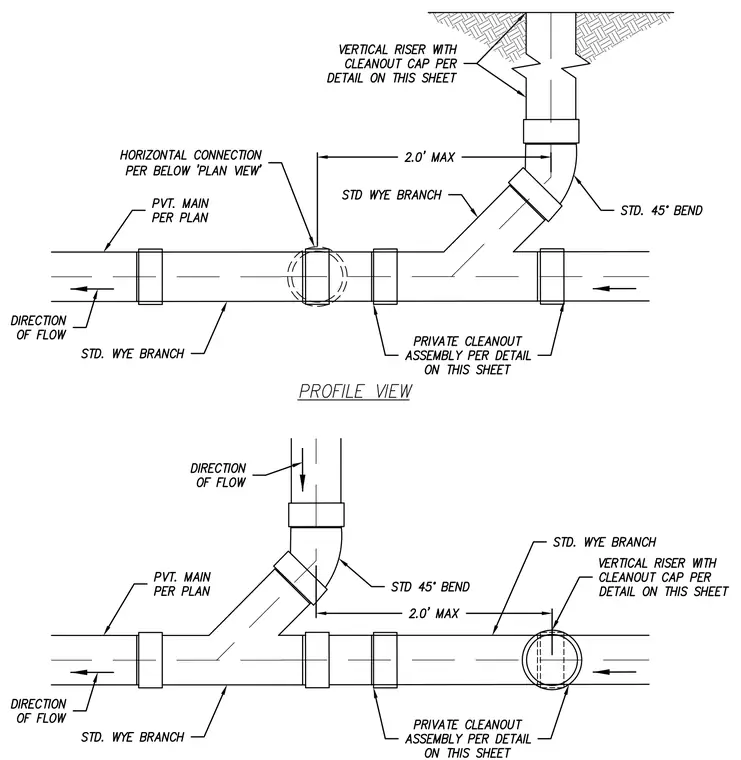

This assembly consists of a standard wye branch connected to a private main pipe, with a vertical riser and cleanout cap extending to the surface. The riser is connected to the wye branch via a standard forty-five degree bend. A maximum horizontal distance of two feet is maintained between the riser centerline and the wye branch connection. The private cleanout assembly is integrated into the main line as specified in the project plans.
