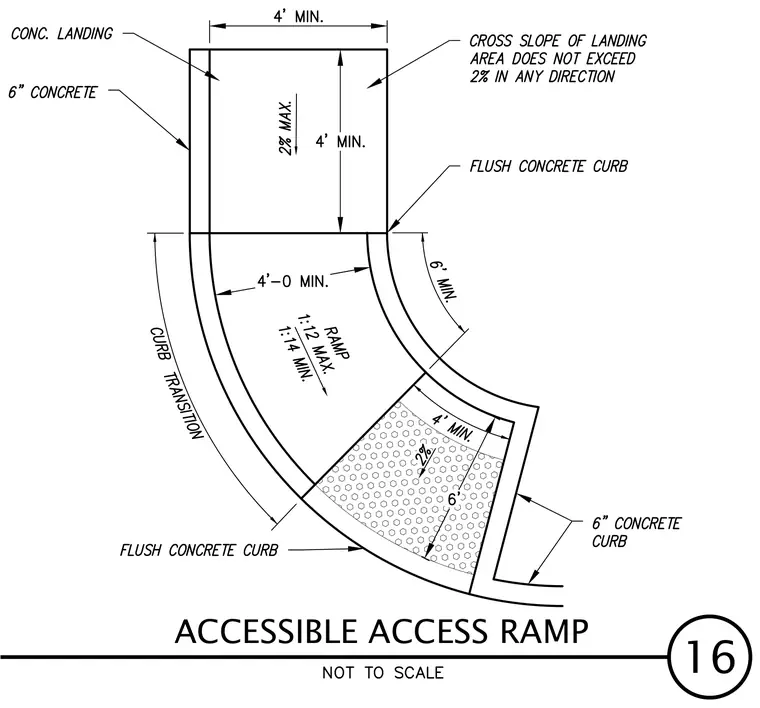

An accessible access ramp plan layout with a concrete landing measuring four feet minimum in both width and length. The ramp features a slope ranging from one to twelve maximum to one to fourteen minimum, bounded by flush concrete curbs and a curb transition. The six-inch concrete landing requires a cross slope not exceeding two percent in any direction.
