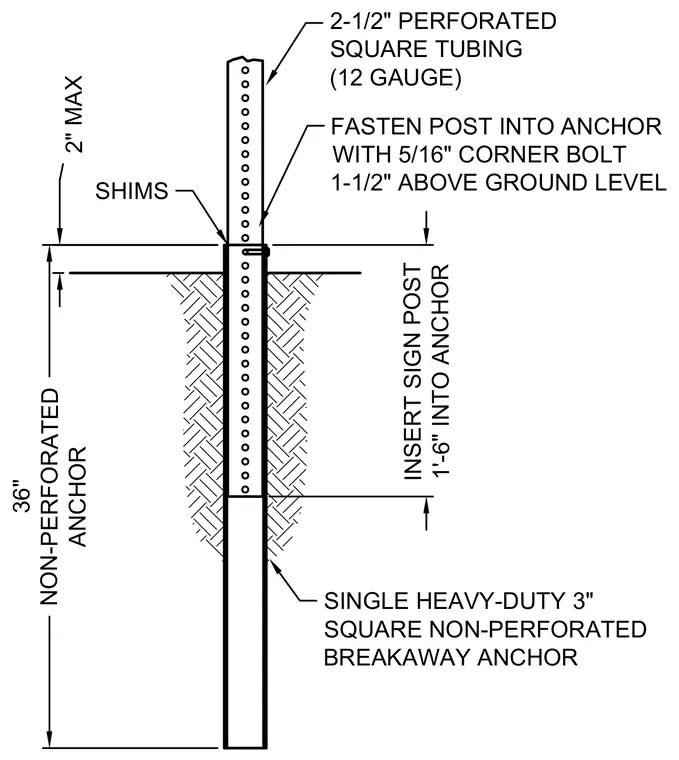

A 2-1/2 inch perforated square tubing of 12 gauge inserts 1'-6" into a single heavy-duty 3 inch square non-perforated breakaway anchor embedded 36 inches into the ground. Shims provide alignment between the post and the anchor sleeve. A 5/16 inch corner bolt fastens the post into the anchor at 1-1/2 inches above ground level. The top of the anchor sleeve is positioned a maximum of 2 inches above finished grade.
INSERT SIGN POST 1'-6" INTO ANCHOR 2" MAX 36" NON-PERFORATED ANCHOR SHIMS SINGLE HEAVY-DUTY 3" SQUARE NON-PERFORATED BREAKAWAY ANCHOR FASTEN POST INTO ANCHOR WITH 5/16" CORNER BOLT 1-1/2" ABOVE GROUND LEVEL 2-1/2" PERFORATED SQUARE TUBING (12 GAUGE)
