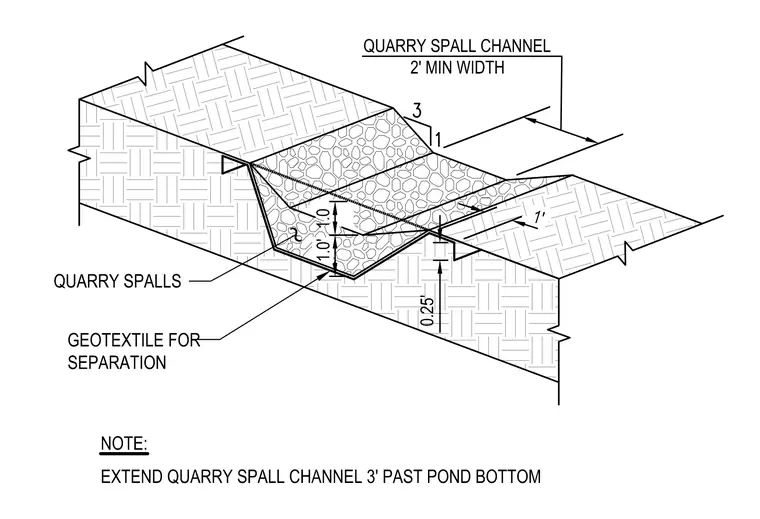

This drainage assembly consists of a trapezoidal channel with a minimum width of two feet and a depth of one foot. The channel side slopes are constructed at a three-to-one ratio. A layer of geotextile fabric is installed for separation beneath the quarry spall lining. The channel features a small 0.25-foot deep transition at the top edge and is required to extend three feet past the pond bottom.
