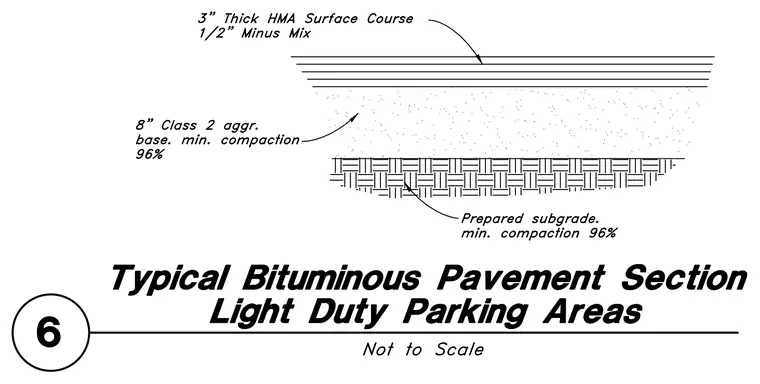

A typical light-duty bituminous pavement section for parking areas comprises a topmost three-inch thick hot mix asphalt surface course utilizing a one-half inch minus mix. Below the asphalt surface lies an eight-inch class two aggregate base requiring a minimum compaction of ninety-six percent. The lowest stratum is a prepared subgrade compacted to a minimum density of ninety-six percent.
