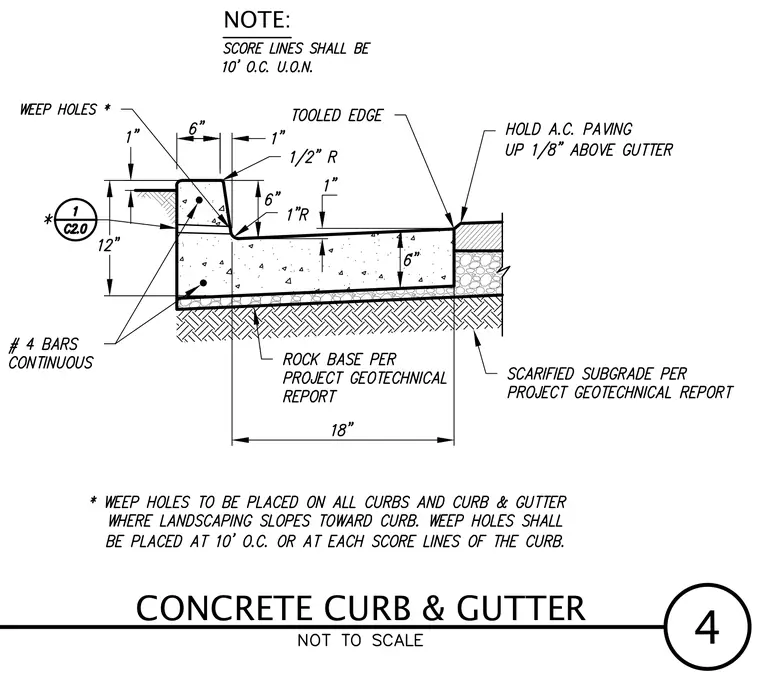

A cast-in-place concrete curb and gutter assembly bears on a compacted rock base and scarified subgrade per the project geotechnical report. The curb measures twelve inches in total height with a six-inch face and top width, featuring a one-inch setback, one-half-inch radius top edge, and a one-inch radius gutter transition. The gutter section extends eighteen inches wide with a six-inch depth, adjacent to asphalt concrete paving held up one-eighth of an inch above the gutter flowline. Two continuous number four reinforcing bars are embedded within the concrete section. Additional notes specify that score lines shall be placed at ten feet on center unless otherwise noted, and weep holes are required on all curbs where landscaping slopes toward the curb.
