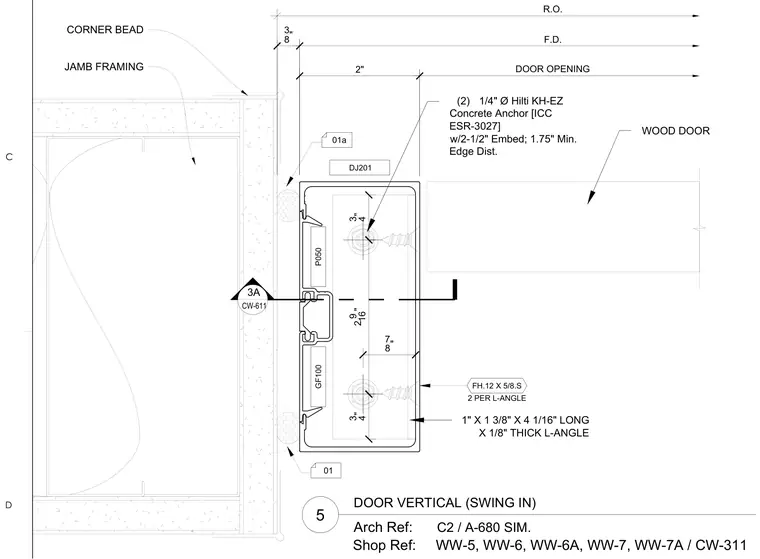

A swing-in wood door anchors to metal stud jamb framing. The wood door aligns with a two-inch door opening flanked by a custom L-angle measuring one inch by one and three-eighths inches by four and one-sixteenth inches long by one-eighth inch thick. Two one-fourth-inch diameter Hilti KH-EZ concrete anchors with two and one-half inches of embedment and a one and three-fourths-inch minimum edge distance secure the assembly, complemented by two flathead screws per L-angle. Corner bead finishes the adjacent wall assembly.
Arch Ref: 5 DOOR VERTICAL (SWING IN) C2 / A-680 SIM. Shop Ref: WW-5, WW-6, WW-6A, WW-7, WW-7A / CW-311 2" DOOR OPENING 3 8" F.D. R.O. FH.12 X 5/8.S 2 PER L-ANGLE (2) 1/4" Ø Hilti KH-EZ Concrete Anchor [ICC ESR-3027] w/2-1/2" Embed; 1.75" Min. Edge Dist. WOOD DOOR 01 01a 1" X 1 3/8" X 4 1/16" LONG X 1/8" THICK L-ANGLE 7 8" 3 4 " 2 9 16 " 3 4 " DJ201 GF100 P050 CORNER BEAD JAMB FRAMING CW-611 3A D C
