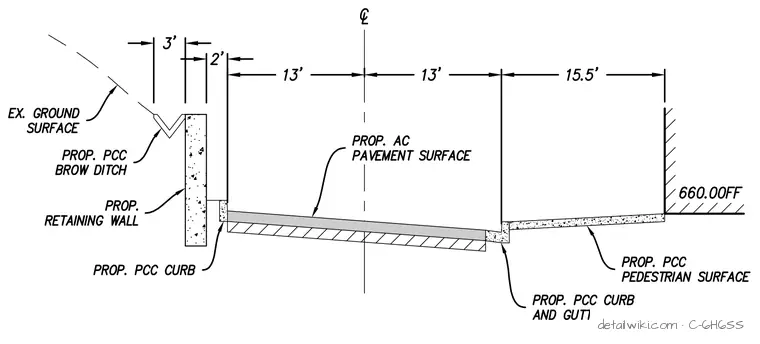

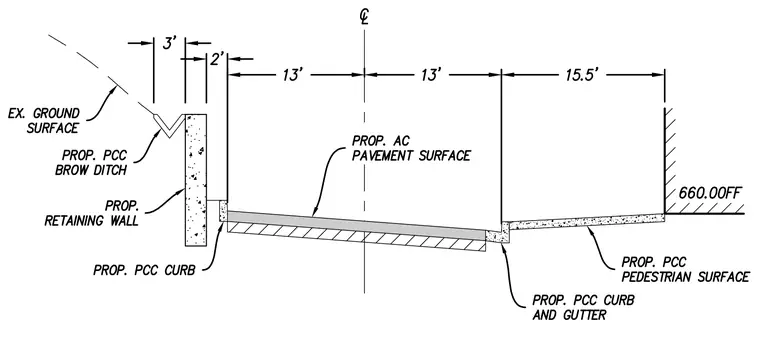

A twenty-six-foot-wide proposed asphalt concrete pavement surface centers on the roadway centerline. Proposed Portland cement concrete curbs flank the pavement, with a curb on the left and a curb and gutter on the right. A proposed Portland cement concrete pedestrian surface extends fifteen and a half feet from the right curb to a finished floor elevation of 660.00. A proposed retaining wall sits two feet from the left edge of the pavement, with a proposed Portland cement concrete brow ditch located three feet behind the wall to manage existing ground surface runoff.
