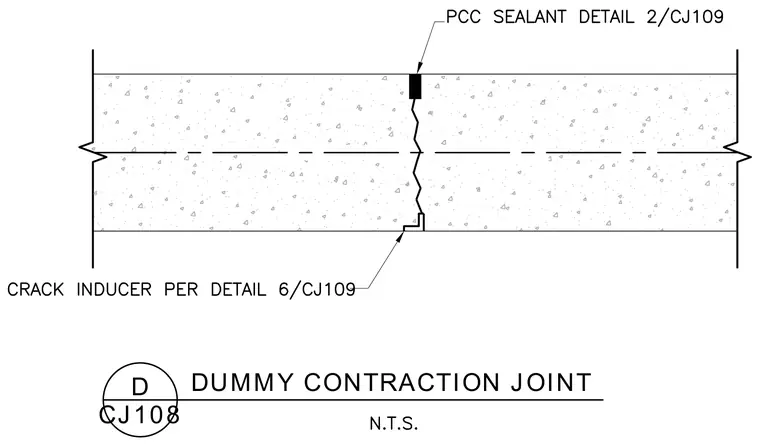

A dummy contraction joint in a concrete slab features portland cement concrete sealant at the top surface per detail 2/CJ109 and a crack inducer at the bottom per detail 6/CJ109 to control cracking along a weakened plane.
