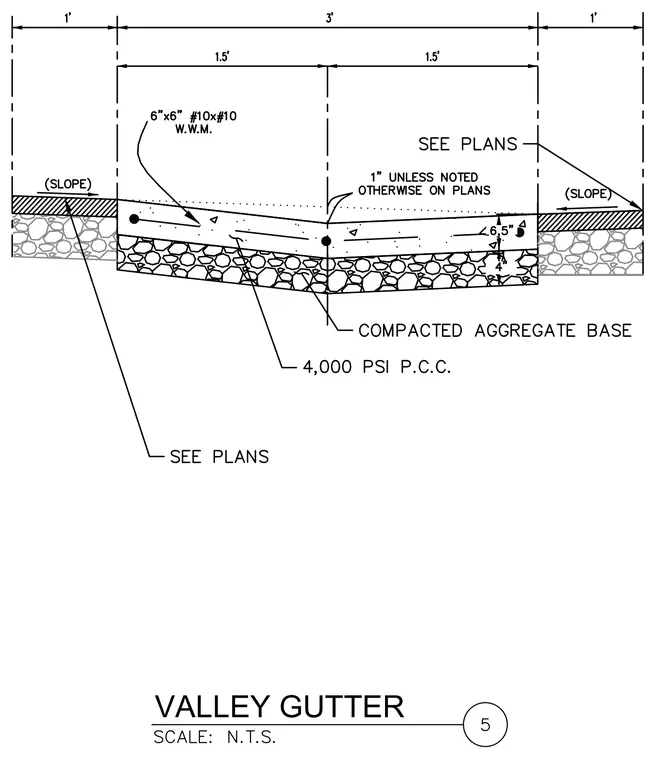

A valley gutter is formed from 4,000 PSI Portland cement concrete reinforced with 6 inches by 6 inches number 10 by number 10 welded wire mesh. The concrete section rests on a compacted aggregate base and is flanked by sloped paved areas as sized per plans. The center of the gutter features a depth dimension of 6.5 inches dropping to 4 inches at the outer edges, with a centerline thickness of 1 inch unless noted otherwise on plans.
