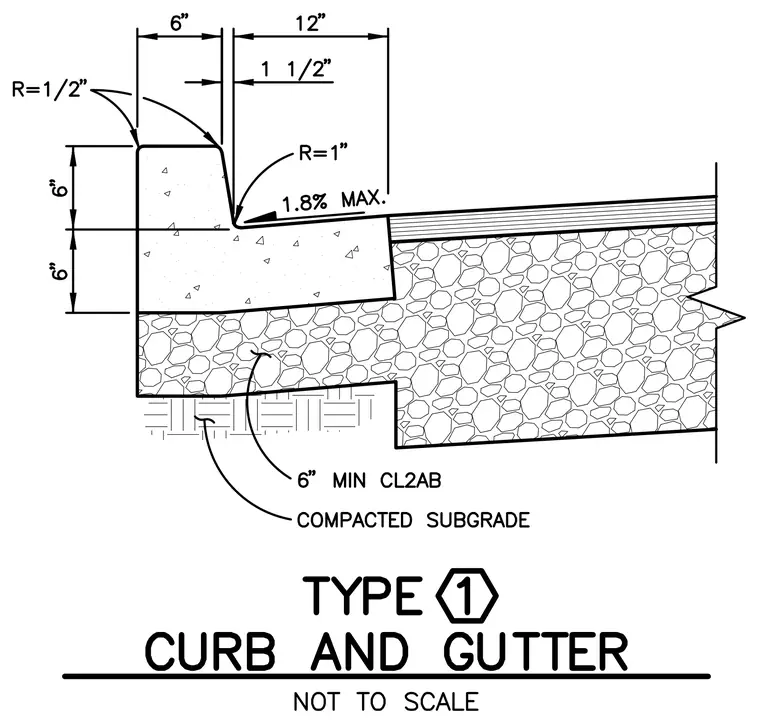

A monolithic concrete curb and gutter profile features a six-inch high curb with a six-inch top width and a twelve-inch gutter width sloping at a maximum of 1.8 percent toward the drainage flowline. The outer curb edge has a half-inch radius, and the gutter flowline has a one-inch radius transitioning to the vertical face. The concrete section rests on a six-inch minimum Class 2 aggregate base over compacted subgrade.
