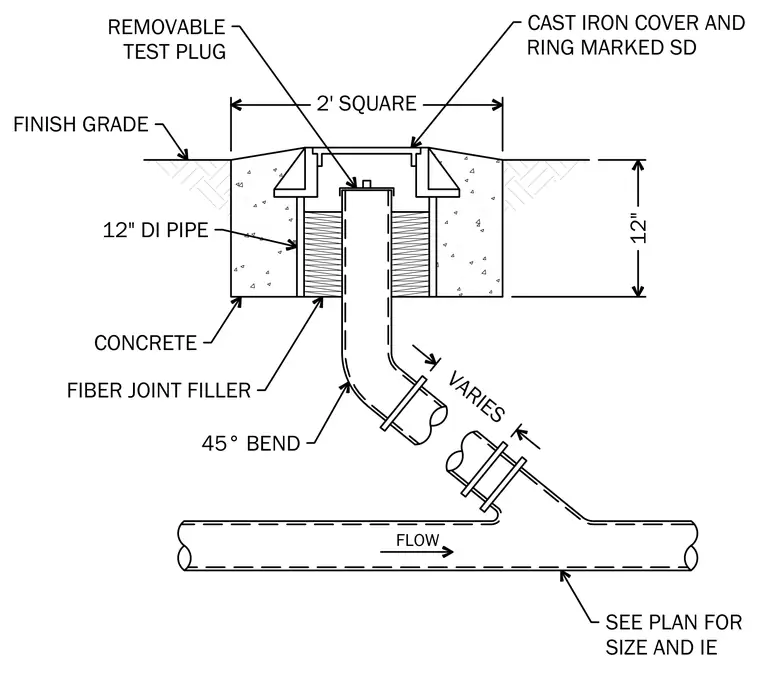

A twelve-inch ductile iron pipe connects to a main storm line with a forty-five degree bend and size per plan. The upper end terminates with a removable test plug below a two-foot square cast-iron cover and ring marked SD. A concrete collar surrounds the upper pipe with fiber joint filler, set flush with the finish grade.
FLOW 2 SEE 3LAN FOR SI =E AN' IE 2 'I 3I3E 2 S4UARE CAST IRON COVER AN ' RING 0AR.E' S' CONCRETE FI %ER -OINT FILLER 5 %EN' VARIES RE 0OVA%LE TEST 3LUG FINISH GRA 'E
