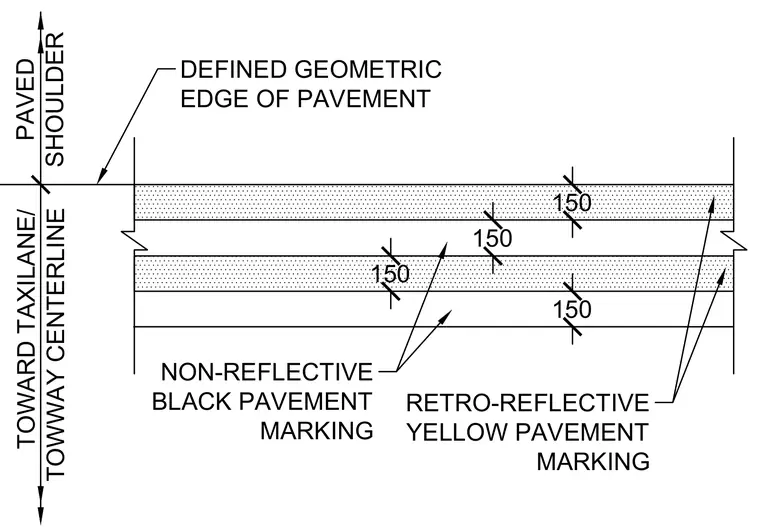

The geometric edge of pavement adjacent to a paved shoulder leads toward a taxilane or taxoinway centerline. The pavement surface features alternating 150-millimeter bands of non-reflective black pavement marking and retro-reflective yellow pavement marking.
150 150 150 PAVED SHOULDER TOWARD TAXILANE/ TOWWAY CENTERLINE DEFINED GEOMETRIC EDGE OF PAVEMENT NON-REFLECTIVE BLACK PAVEMENT MARKING RETRO-REFLECTIVE YELLOW PAVEMENT MARKING 150
