Three-eighths inch perforations are positioned within the valleys of corrugated pipe at forty-five degree intervals, with eight perforations allocated to each section.

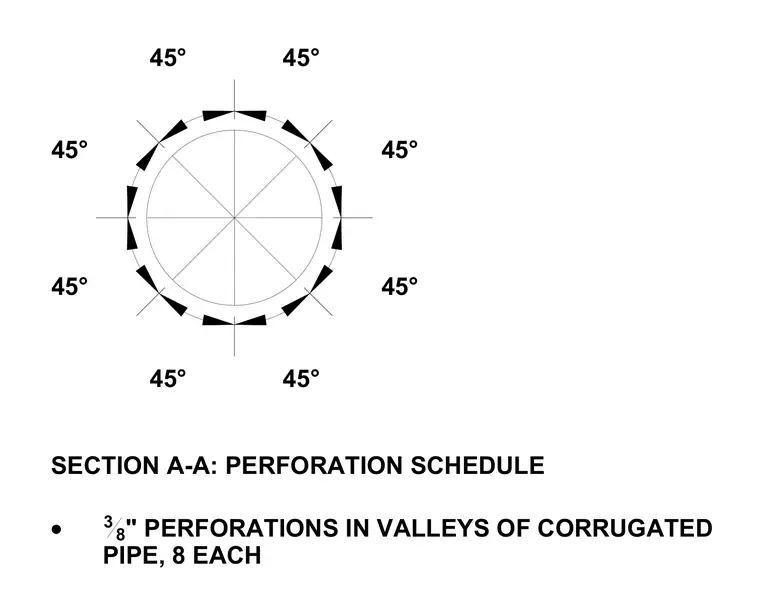

45° 45° 45° 45° 45° 45° 45° 45° SECTION A-A: PERFORATION SCHEDULE · 3 8 " PERFORATIONS IN VALLEYS OF CORRUGATED PIPE, 8 EACH
