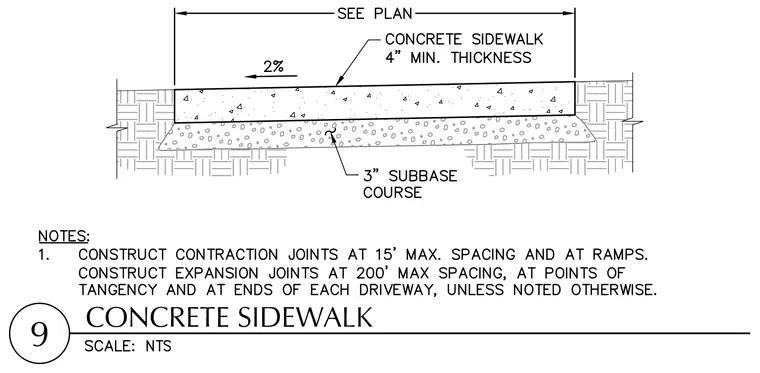

A concrete sidewalk section features a four-inch minimum thickness concrete slab cast over a three-inch subbase course. The top surface of the sidewalk slopes at two percent toward the adjacent grade, with a width sized per plan. Associated notes specify contraction joints at fifteen feet maximum spacing and at ramps, along with expansion joints at two hundred feet maximum spacing, at points of tangency, and at the ends of each driveway unless noted otherwise.
