Structural · C-64QYD

Typical Core Plate Detail

Materials

Steel

Elements

Connections / Plates

Connections

Bolted Connection

About this detail

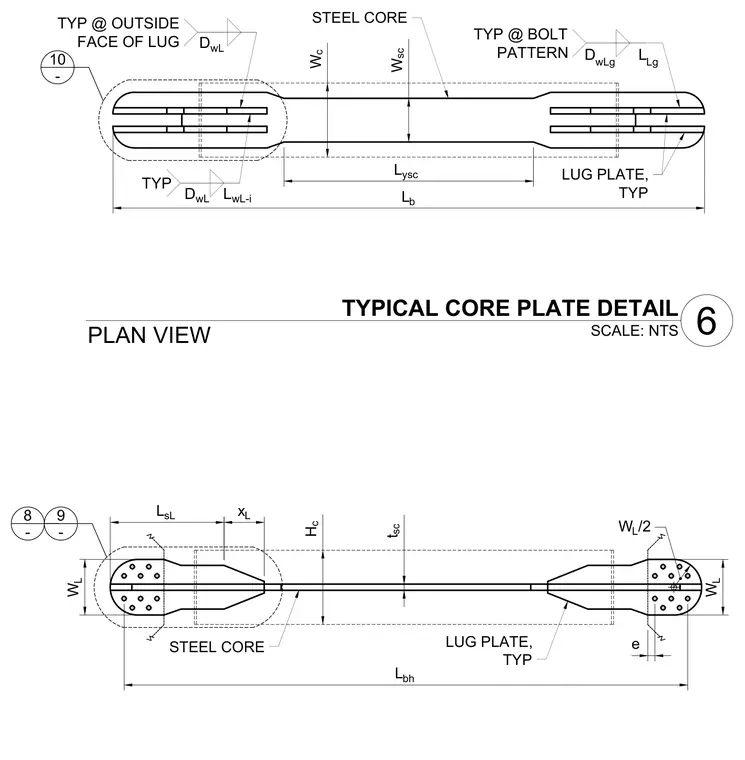

A steel core plate assembly features lug plates welded to both ends. The central steel core connects to the bolted lug plates, which include specified dimensions for length, width, and edge distance. Weld symbols are designated typically at the outside face of the lug and along the bolt pattern. Dimensional variables indicate the overall length, plate thickness, and bolt hole spacings across the assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
