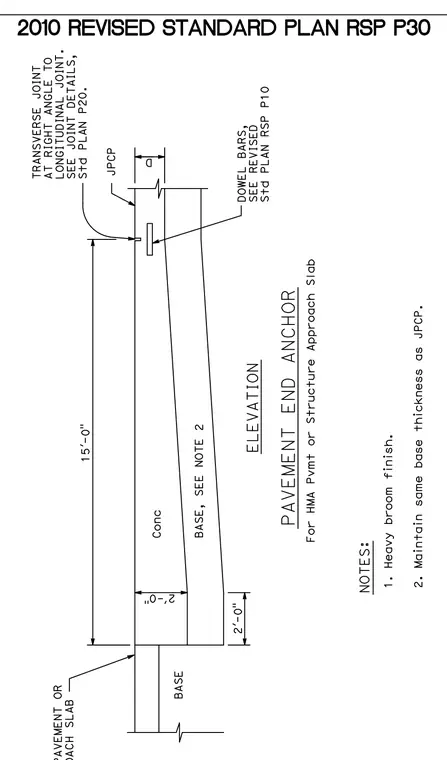

This elevation shows a pavement end anchor for hot mix asphalt pavement or structure approach slab, featuring a jointed plain concrete pavement section supported by a base layer. Dowel bars are embedded within the slab per standard plan requirements. A transverse joint is positioned at a right angle to the longitudinal joint. The concrete slab features a thickness of two feet with a heavy broom finish.
