Architectural · C-63RY8

Arch Ref:

Elements

About this detail

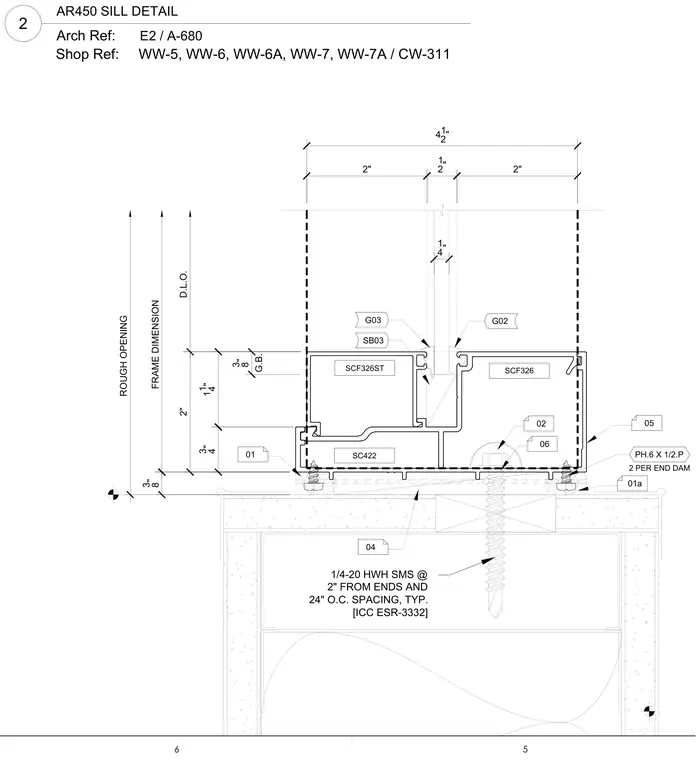

This aluminum storefront sill assembly features extruded aluminum framing members SCF326, SCF326ST, and SC422 secured to the substrate with 1/4-20 hex washer head self-tapping screws spaced two inches from the ends and twenty-four inches on center. The glazing pocket receives a glass lite supported by setting blocks and sealed with gaskets G02 and G03. Shims and end dams are incorporated at the sill interface per shop drawings. Dimensions indicate a daylight opening, frame dimension, and rough opening relationship.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
