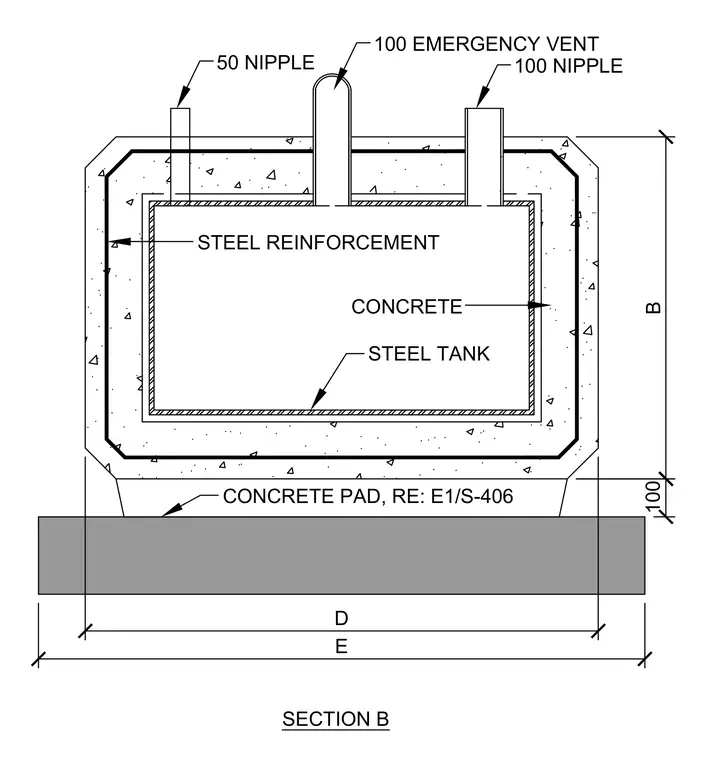

A steel tank is fully encased in reinforced concrete with internal steel reinforcement details. The assembly features a fifty-millimeter nipple, a one-hundred-millimeter nipple, and a one-hundred-millimeter emergency vent penetrating the top of the tank. The entire concrete-encased tank rests on a concrete pad as referenced on sheet E1/S-406. Dimension variables B, D, and E define the overall geometric layout of the tank and pad assembly.
SECTION B 50 NIPPLE 100 NIPPLE STEEL REINFORCEMENT CONCRETE STEEL TANK 100 EMERGENCY VENT CONCRETE PAD, RE: E1/S-406 E D B 100
