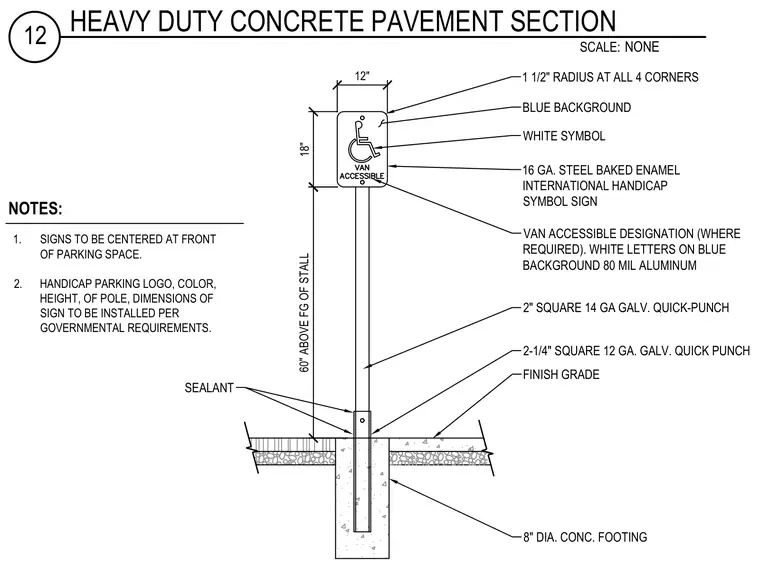

An international handicap symbol sign with a van accessible designation is mounted on a two-inch square fourteen-gauge galvanized quick-punch post set inside a two-and-quarter-inch square twelve-gauge galvanized quick-punch sleeve. The sign is constructed from sixteen-gauge steel with baked enamel or eighty-mil aluminum with a blue background and white symbol, featuring one-and-a-half-inch radius corners and measuring twelve by eighteen inches. The post extends sixty inches above the finish grade of the stall and is anchored into an eight-inch diameter concrete footing with sealant applied at the grade intersection.
SCALE: 12 NONE HEAVY DUTY CONCRETE PAVEMENT SECTION 12" 18" 1 1/2" RADIUS AT ALL 4 CORNERS BLUE BACKGROUND WHITE SYMBOL 16 GA. STEEL BAKED ENAMEL INTERNATIONAL HANDICAP SYMBOL SIGN 2" SQUARE 14 GA GALV. QUICK-PUNCH 2-1/4" SQUARE 12 GA. GALV. QUICK PUNCH FINISH GRADE 8" DIA. CONC. FOOTING SEALANT 1. SIGNS TO BE CENTERED AT FRONT OF PARKING SPACE. 2. HANDICAP PARKING LOGO, COLOR, HEIGHT, OF POLE, DIMENSIONS OF SIGN TO BE INSTALLED PER GOVERNMENTAL REQUIREMENTS. NOTES: 60" ABOVE FG OF STALL VAN ACCESSIBLE DESIGNATION (WHERE REQUIRED). WHITE LETTERS ON BLUE BACKGROUND 80 MIL ALUMINUM
