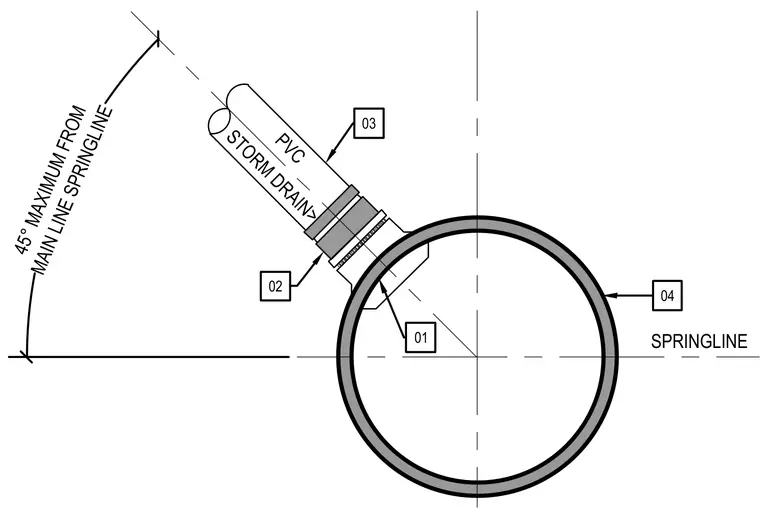

A PVC storm drain branch connects to the main line using a water-tight flexible tee connector positioned at a maximum angle of forty-five degrees from the main line springline.
