A two-way cleanout assembly consists of a two-way cleanout tee connected to a piping network of specified material and diameter, extending upward to finish grade. The top of the pipe is surrounded by fiber joint packing and finished with a cast iron ring and cover that match standard municipal details. The cover assembly is sized according to the pipe diameter plus two inches, terminating flush with the surrounding grade.

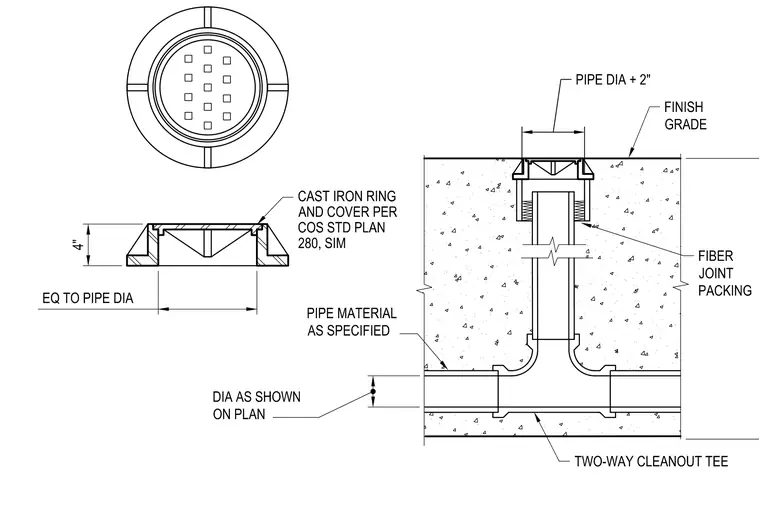

FIBER JOINT PACKING FINISH GRADE EQ TO PIPE DIA PIPE MATERIAL AS SPECIFIED DIA AS SHOWN ON PLAN TWO-WAY CLEANOUT TEE 4" PIPE DIA + 2" CAST IRON RING AND COVER PER COS STD PLAN 280, SIM
