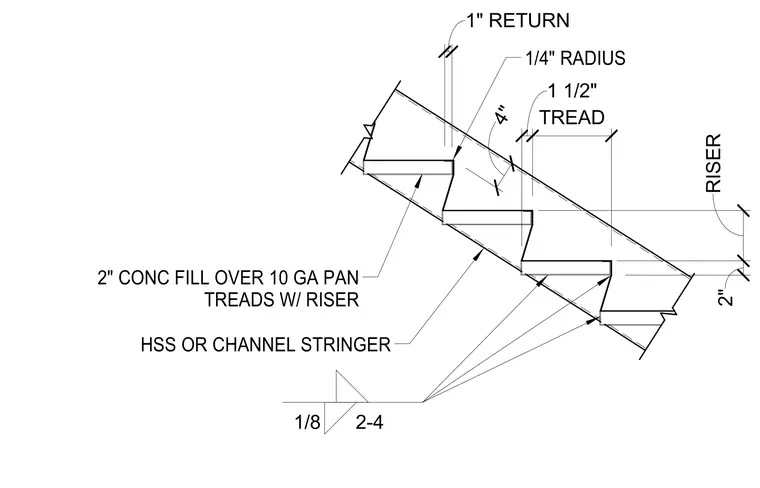

The assembly consists of a 10 gauge metal pan stair tread filled with 2 inches of concrete, supported by a hollow structural section or channel stringer. The stair tread features an integral riser with a 1-inch return and a 1/4-inch radius bend. Dimensions include a 1 1/2-inch tread projection, 4-inch dimension, and a 2-inch riser height. Fillet welds sized at 1/8 inch spaced at 2-4 inches connect the pan treads to the stringer.
1/8 2-4 2" CONC FILL OVER 10 GA PAN TREADS W/ RISER HSS OR CHANNEL STRINGER 1/4" RADIUS 1" RETURN RISER 2" 1 1/2" TREAD 4"
