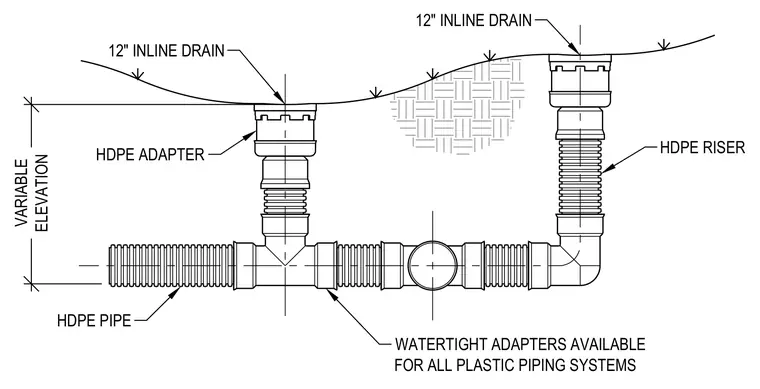

A twelve-inch HDPE inline drain connects to an underground HDPE pipe network via an HDPE adapter and corrugated HDPE riser. The system accommodates variable elevations using watertight adapters available for all plastic piping systems. The main horizontal HDPE pipe ties into tees and elbows beneath the grade surface.
VARIABLE ELEVATION WATERTIGHT ADAPTERS AVAILABLE FOR ALL PLASTIC PIPING SYSTEMS 12" INLINE DRAIN 12" INLINE DRAIN HDPE ADAPTER HDPE RISER HDPE PIPE
