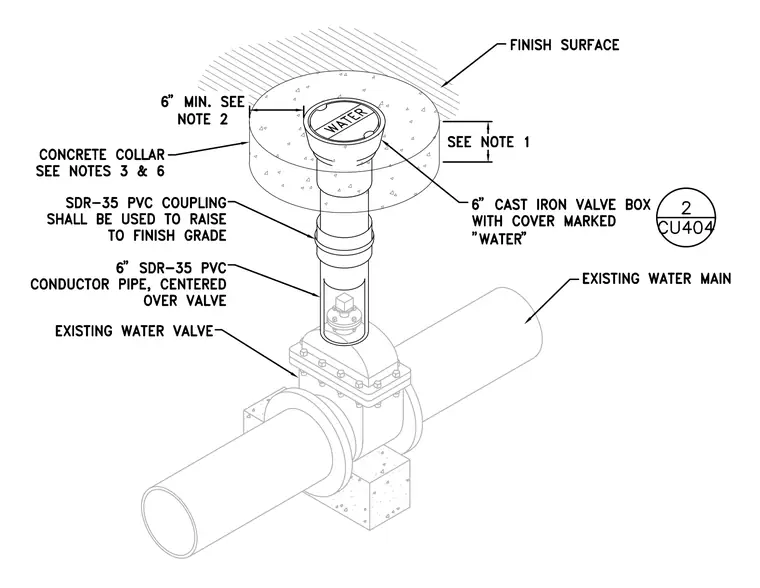

An existing water valve mounted on an existing water main connects to a six-inch SDR-35 PVC conductor pipe centered over the valve. A standard SDR-35 PVC coupling raises the assembly to finish grade. A six-inch cast iron valve box with a cover marked "WATER" sits within a concrete collar at the finish surface.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
