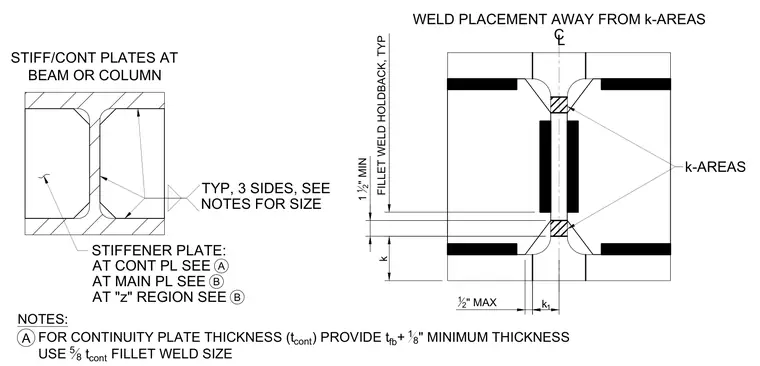

Continuity plates and stiffener plates are welded to a wide-flange steel member web with specific thickness requirements and weld holdbacks. Continuity plate thickness is sized to the beam flange thickness plus one-eighth inch minimum, with fillet weld size specified as five-eighths of the continuity plate thickness on three sides. Fillet welds maintain a one-and-a-half-inch minimum holdback from the k-areas, with weld placement kept entirely away from the column k-areas.
FOR CONTINUITY PLATE THICKNESS (t cont ) PROVIDE t fb + 18 " MINIMUM THICKNESS TYP, 3 SIDES, SEE STIFFENER PLATE: A AT CONT PL SEE AT MAIN PL SEE AT "z" REGION SEE A B B NOTES FOR SIZE NOTES: USE 5 8 t cont FILLET WELD SIZE STIFF/CONT PLATES AT BEAM OR COLUMN k 1 1 2 " MIN FILLET WELD HOLDBACK, TYP WELD PLACEMENT AWAY FROM k-AREAS 12 " MAX k-AREAS CL k 1
