C-5FDGD — Plumbing Compartment

Electrical · C-5FDGD

Plumbing Compartment

About this detail

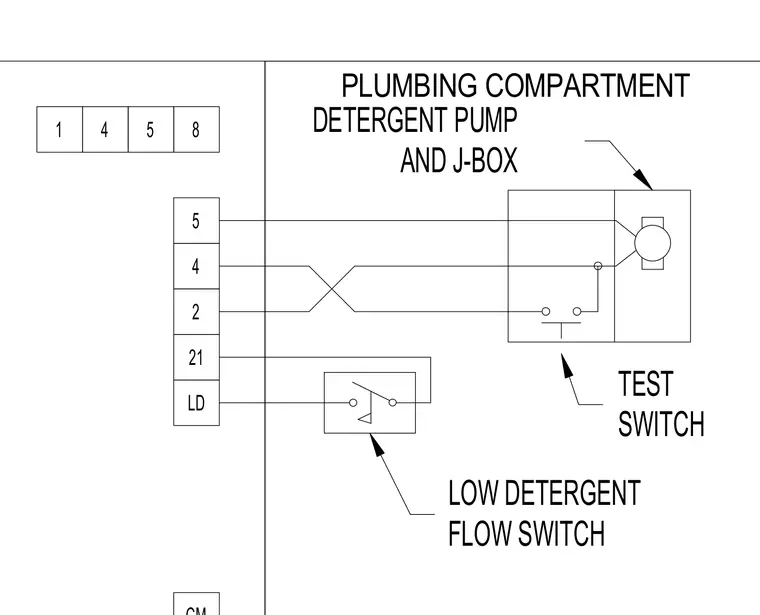

Wiring schematic for a plumbing compartment containing a detergent pump, test switch, and low detergent flow switch. Terminal blocks 1, 4, 5, 8, 21, and LD connect the internal components. The detergent pump and test switch tie into terminals 5, 4, 2, and 8. The low detergent flow switch is wired across terminals 21 and LD.

PLUMBING COMPARTMENT 5 2 4 21 LD 1 4 5 8 DETERGENT PUMP AND J-BOX TEST SWITCH LOW DETERGENT FLOW SWITCH

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
