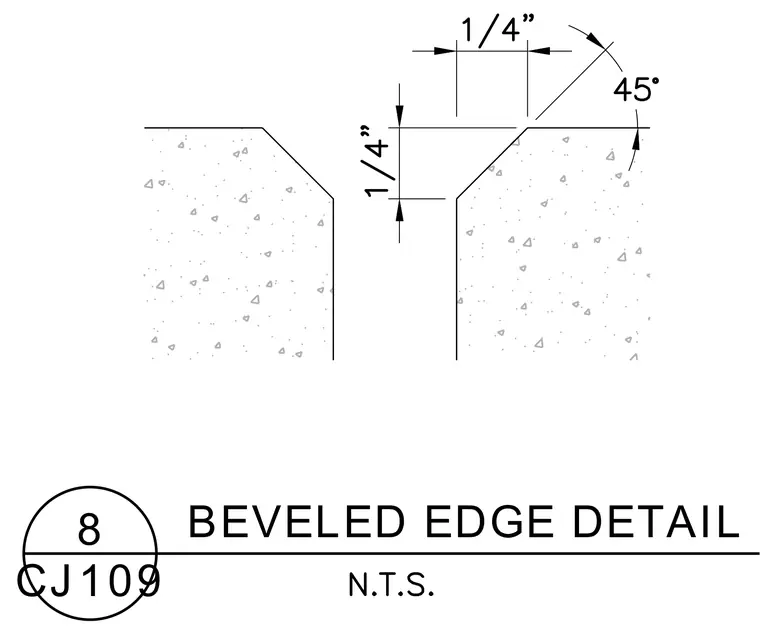

A concrete slab edge is formed with a one-quarter inch by one-quarter inch beveled edge at a forty-five degree angle along the vertical joint interface. The chamfered corner prevents chipping and spalling along the exposed concrete edges at the construction joint.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
