Typical End Connection Detail for Cased Steel Core

Materials

Steel

Elements

Millwork / Casework Connections / Plates

Connections

Gusset Plate Bolted Connection

About this detail

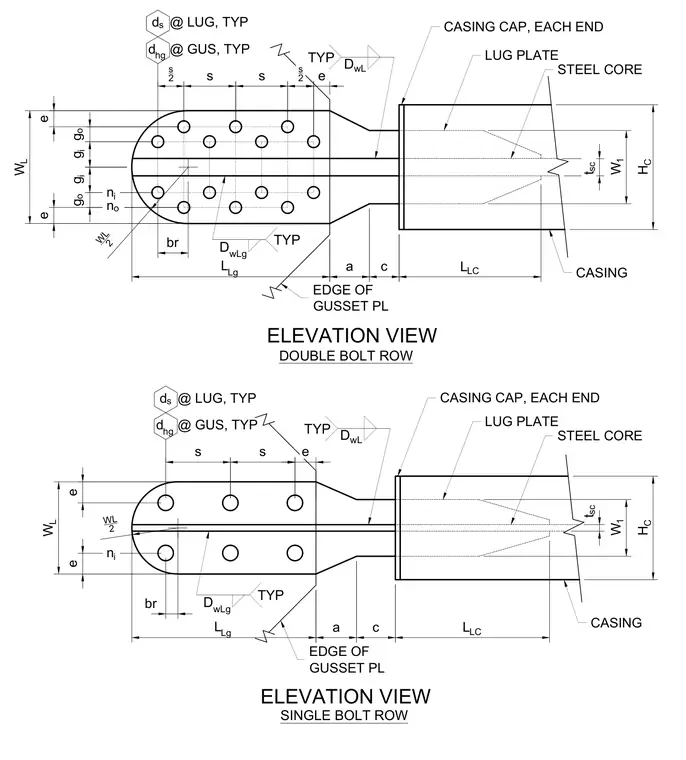

This connection assembly features a steel core enclosed in casing, joined to a structural gusset plate via a welded lug plate and casing caps at each end. The transition includes specific weld sizes and edge distances for both single and double bolt configurations. Standard bolt diameters and spacings are dimensioned across the rounded end of the gusset plate. The structural layout provides secure end anchorage for heavy-duty structural members.
