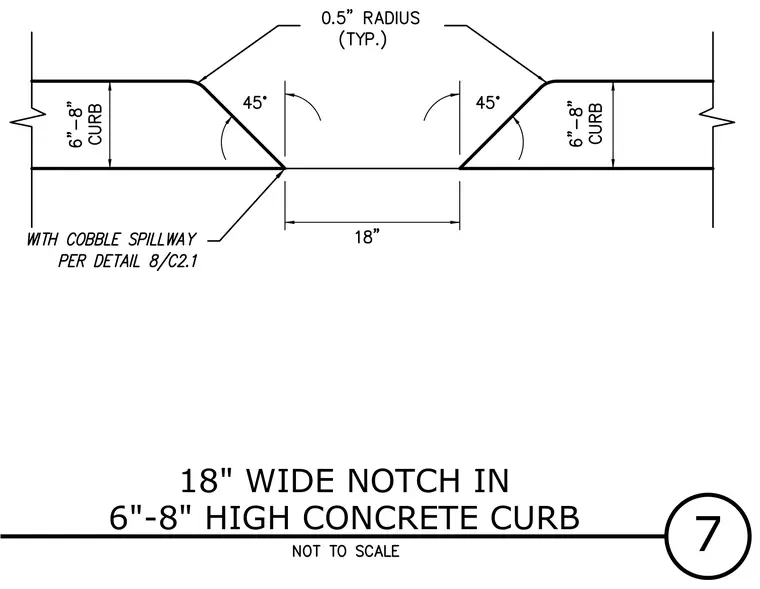

An 18-inch wide notch is formed within a 6 to 8-inch high concrete curb. The notch features 45-degree sloped transitions dropping to the invert, with 1/2-inch typical radii at the upper corners. A cobble spillway is specified per detail 8 on sheet C2.1.
