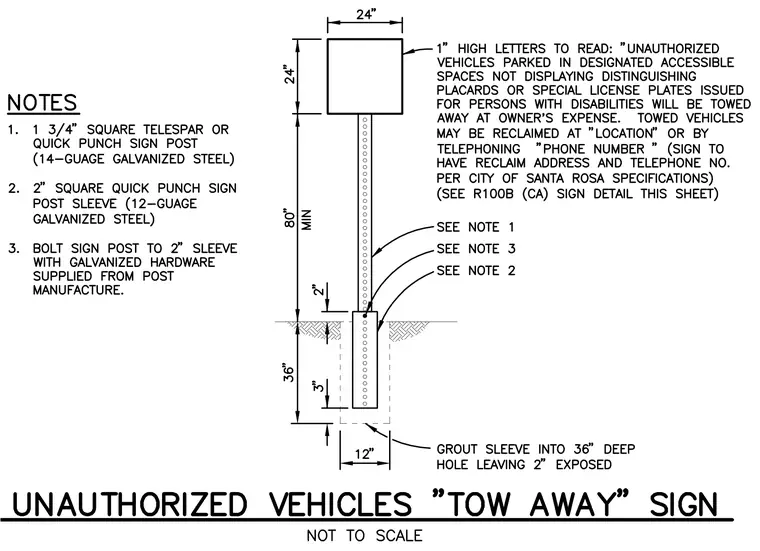

An accessible parking sign assembly is supported by a 1 3/4-inch square Telespar or Quick Punch sign post fabricated from 14-gauge galvanized steel. The post is inserted into a 2-inch square Quick Punch sign post sleeve made from 12-gauge galvanized steel and bolted together using galvanized hardware supplied by the manufacturer. The sleeve is grouted into a 36-inch deep and 12-inch diameter hole, leaving 2 inches exposed above grade. The sign plate measures 24 inches by 24 inches and displays required towing regulations in 1-inch high letters. The bottom of the sign is positioned at a minimum height of 80 inches above the finished grade.
