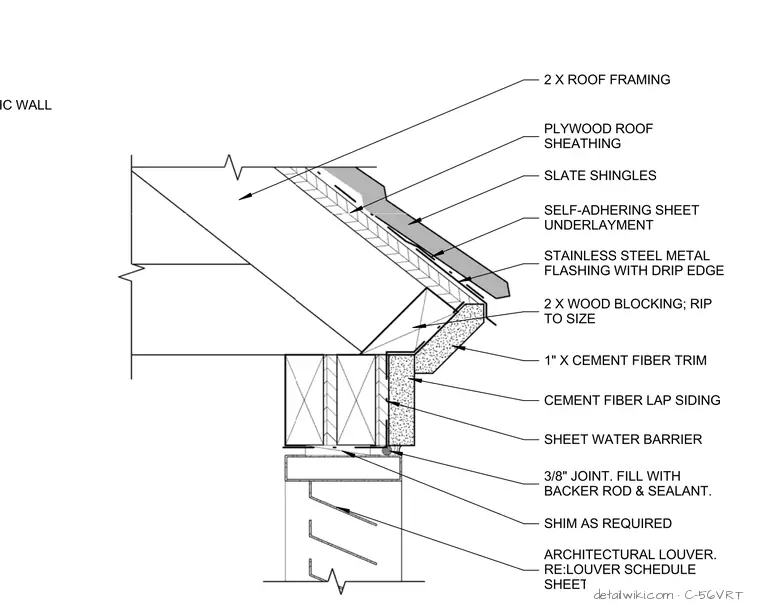

The roof eave construction consists of two by roof framing, plywood roof sheathing, a self-adhering sheet underlayment, and slate shingles terminating at a stainless steel metal flashing with drip edge. Two by wood blocking ripped to size supports the overhang and meets one-inch cement fiber trim and cement fiber lap siding over a sheet water barrier. A three-eighths inch joint is filled with backer rod and sealant above shims and an architectural louver referenced to the louver schedule on sheet U-601.
SLATE SHINGLES CEMENT FIBER LAP SIDING 1" X CEMENT FIBER TRIM 3/8" JOINT. FILL WITH BACKER ROD & SEALANT. ARCHITECTURAL LOUVER. RE:LOUVER SCHEDULE SHEET # U-601 SHIM AS REQUIRED PLYWOOD ROOF SHEATHING SELF-ADHERING SHEET UNDERLAYMENT STAINLESS STEEL METAL FLASHING WITH DRIP EDGE SHEET WATER BARRIER 2 X ROOF FRAMING 2 X WOOD BLOCKING; RIP TO SIZE EXTERIOR ACOUSTIC WALL EXTERIOR ACOUSTIC WALL
