White letters spelling NO PARKING are painted in the loading and unloading area at least 305 millimeters or 12 inches high on a contrasting background. The layout grid specifies letter heights of 1'-0" with 4" spacing, 1-1/2" line widths, and 2" spacing. Markings are located for visibility to traffic enforcement officials.

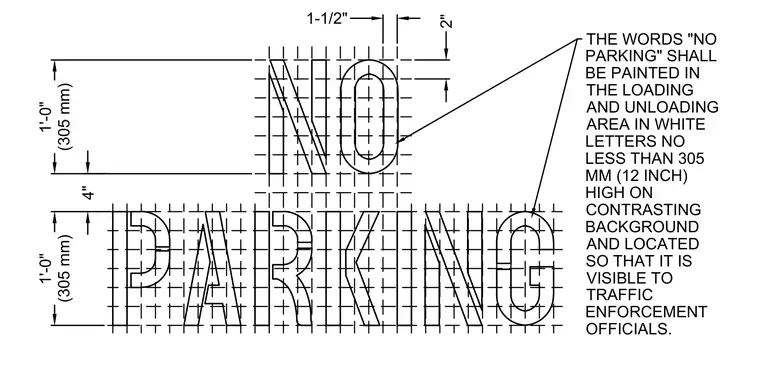

1'-0" (305 mm) 1'-0" (305 mm) 4" 1-1/2" 2" THE WORDS "NO PARKING" SHALL BE PAINTED IN THE LOADING AND UNLOADING AREA IN WHITE LETTERS NO LESS THAN 305 MM (12 INCH) HIGH ON CONTRASTING BACKGROUND AND LOCATED SO THAT IT IS VISIBLE TO TRAFFIC ENFORCEMENT OFFICIALS.
