Civil · C-5366Z

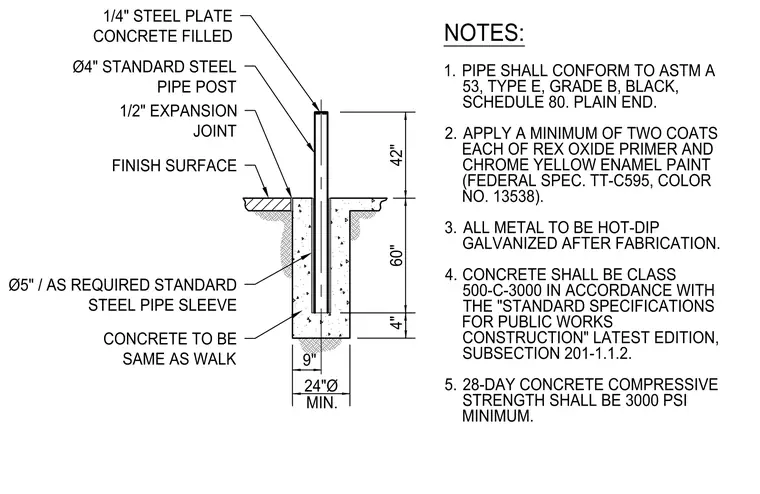

Fixed Steel Pipe Bollard Detail

Materials

Concrete Steel Glass / Glazing Metal (misc.)

Elements

Columns Expansion / Control Joints Site / Paving Connections / Plates

Connections

Expansion / Slip Connection

About this detail

A fixed 4-inch diameter standard steel pipe post is concrete-filled and capped with a one-quarter-inch steel plate at the top. The post extends forty-two inches above the finish surface and is embedded sixty inches below into a standard steel pipe sleeve measuring five inches in diameter or as required. The sleeve is set within a concrete footing featuring a twenty-four-inch minimum diameter and a four-inch clearance beneath the pipe. A one-half-inch expansion joint is provided at the finish surface around the post base. General notes specify that the pipe must conform to ASTM A 53, Type E, Grade B, black, schedule 80 with plain ends. All metal components are to be hot-dip galvanized after fabrication and finished with two coats of red oxide primer and chrome yellow enamel paint complying with Federal Specification TT-C595, Color No. 13538. The concrete for the footing and surrounding walk must achieve a minimum twenty-eight-day compressive strength of 3000 PSI and comply with Class 500-C-3000 standards.
