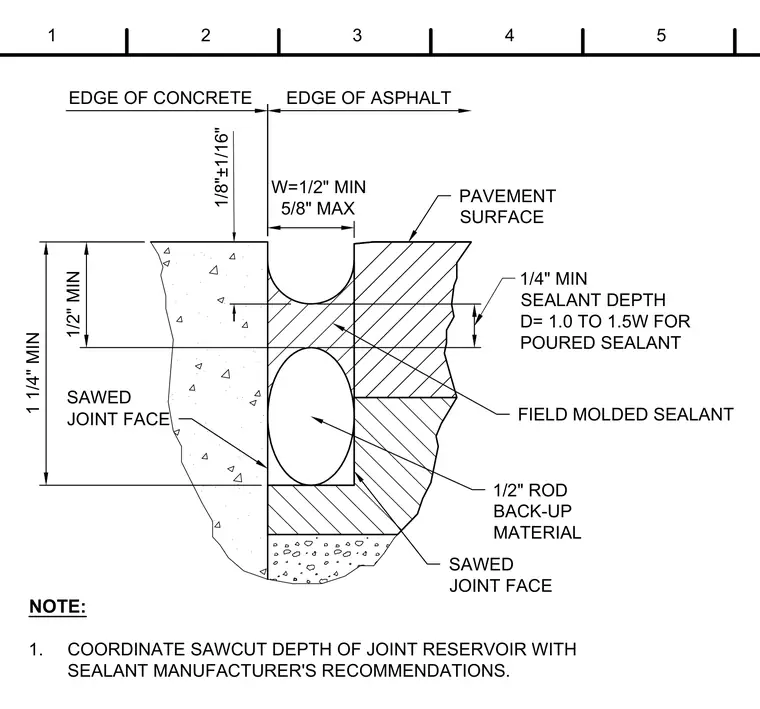

A transition joint between portland cement concrete and asphalt pavement incorporates a field molded sealant. The joint reservoir features a sawed face on both the concrete and asphalt sides with a width between one-half inch minimum and five-eighths inch maximum. A one-half inch round back-up material rod sits inside the reservoir below a poured sealant depth ranging from one to one and a half times the joint width with a one-quarter inch minimum depth. A vertical offset of one-eighth inch plus or minus one-sixteenth inch is maintained between the pavement surfaces. The sawcut depth of the joint reservoir must be coordinated with the sealant manufacturer's recommendations.
1 1/4" MIN 1/2" MIN W=1/2" MIN 5/8" MAX 1/4" MIN SEALANT DEPTH D= 1.0 TO 1.5W FOR POURED SEALANT NOTE: 1. COORDINATE SAWCUT DEPTH OF JOINT RESERVOIR WITH SEALANT MANUFACTURER'S RECOMMENDATIONS. EDGE OF ASPHALT EDGE OF CONCRETE 1/8"±1/16" 1/2" ROD BACK-UP MATERIAL SAWED JOINT FACE SAWED JOINT FACE FIELD MOLDED SEALANT PAVEMENT SURFACE 1 3 5 2 4
