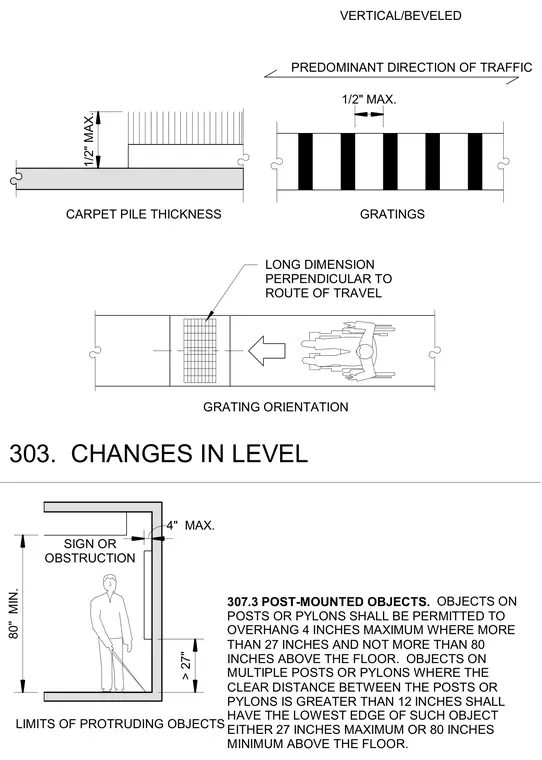

Accessibility diagrams establish regulatory compliance standards for floor finishes and pedestrian circulation paths. Carpet pile thickness is limited to a maximum of one-half inch. Floor gratings require openings oriented with the long dimension perpendicular to the route of travel. Protruding objects on single posts or pylons may overhang up to four inches when positioned between twenty-seven and eighty inches above the floor. Objects on multiple posts or pylons must maintain a lowest edge either twenty-seven inches maximum or eighty inches minimum above the floor when the clear distance between supports exceeds twelve inches.
1/2" MAX. CARPET PILE THICKNESS 1/2" MAX. PREDOMINANT DIRECTION OF TRAFFIC GRATINGS GRATING ORIENTATION 303. CHANGES IN LEVEL LONG DIMENSION PERPENDICULAR TO ROUTE OF TRAVEL VERTICAL/BEVELED 80" MIN. > 27" 4" MAX. SIGN OR OBSTRUCTION LIMITS OF PROTRUDING OBJECTS 307.3 POST-MOUNTED OBJECTS. OBJECTS ON POSTS OR PYLONS SHALL BE PERMITTED TO OVERHANG 4 INCHES MAXIMUM WHERE MORE THAN 27 INCHES AND NOT MORE THAN 80 INCHES ABOVE THE FLOOR. OBJECTS ON MULTIPLE POSTS OR PYLONS WHERE THE CLEAR DISTANCE BETWEEN THE POSTS OR PYLONS IS GREATER THAN 12 INCHES SHALL HAVE THE LOWEST EDGE OF SUCH OBJECT EITHER 27 INCHES MAXIMUM OR 80 INCHES MINIMUM ABOVE THE FLOOR.
