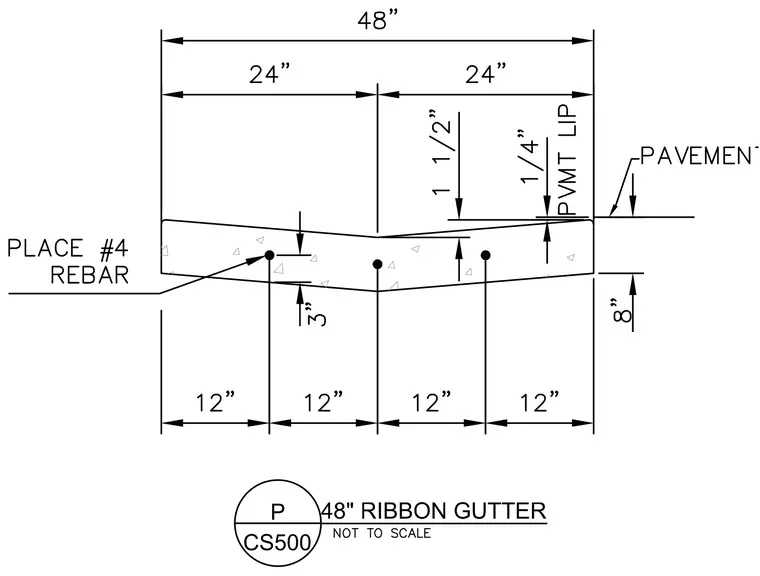

A 48-inch concrete ribbon gutter measuring forty-eight inches in total width with a center depression. The assembly is reinforced with number four rebar placed three inches clear of the bottom and spaced symmetrically at twelve-inch increments. The cross section indicates a pavement lip offset of one-fourth inch and a vertical grade transition of one and one-half inches adjacent to the pavement surface.
