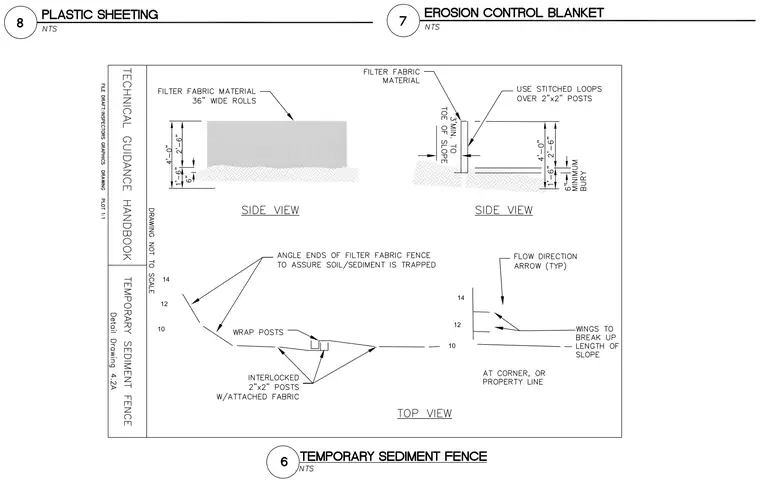

Temporary sediment fence installation utilizing 36-inch wide filter fabric material supported by interlocked two-by-two posts. The assembly features a minimum bury depth of 6 inches with a total height of 4 feet, including a 2-foot 6-inch fabric section and a 1-foot 6-inch base. Ends of the filter fabric fence are angled to assure soil and sediment are trapped. At corners or property lines, wings are configured to break up the length of slope with designated flow direction arrows.
