A preformed compression sealant is installed within a concrete pavement construction joint ranging from one-eighth to one-quarter inch wide, set one-half inch minimum to five-eighths inch maximum below the concrete pavement surface. The seal requires a one-half to five-eighths inch width "W" and a one-and-one-half inch minimum depth, installed with a one-component elastomeric joint seal lubricant conforming to specification section 32 13 73.19.

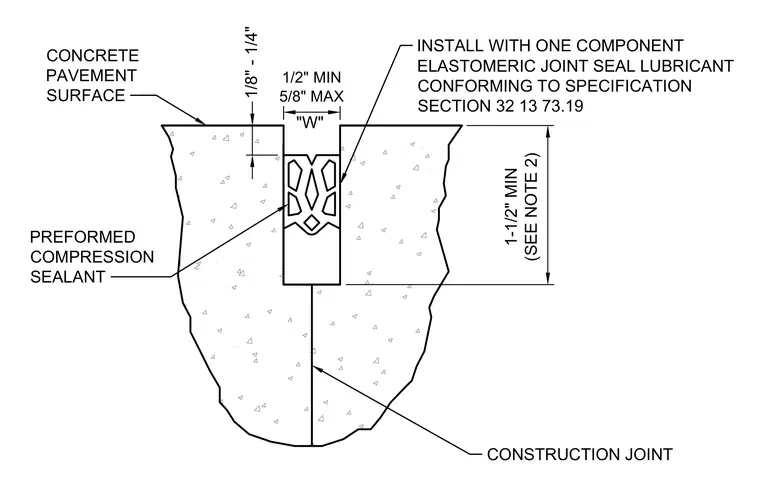

1/2" MIN 5/8" MAX "W" PREFORMED COMPRESSION SEALANT CONCRETE PAVEMENT SURFACE INSTALL WITH ONE COMPONENT ELASTOMERIC JOINT SEAL LUBRICANT CONFORMING TO SPECIFICATION SECTION 32 13 73.19 1-1/2" MIN (SEE NOTE 2) 1/8" - 1/4" CONSTRUCTION JOINT
