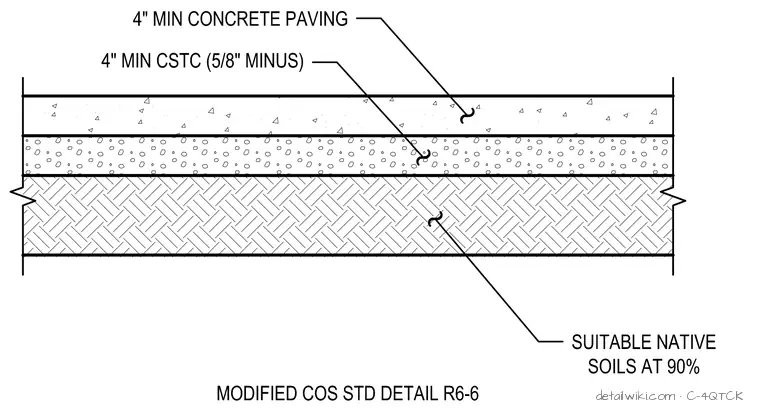

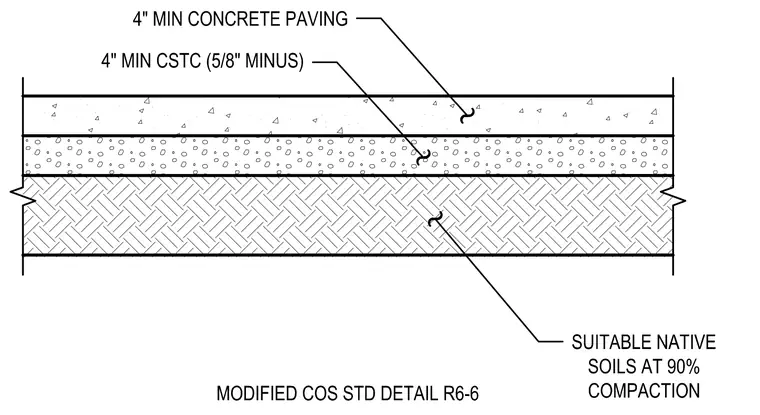

A four-inch minimum thickness concrete paving slab sits over a four-inch minimum layer of crushed surfacing top course (CSTC) with five-eighths inch minus aggregate. The base course rests directly upon suitable native soils compacted to ninety percent density.
