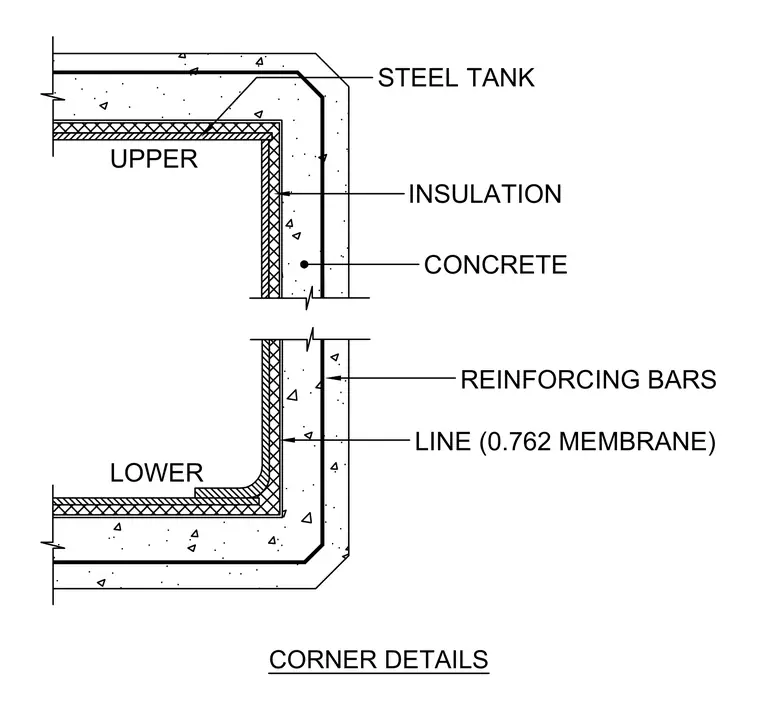

A concrete wall corner encloses a steel tank lined with internal insulation and a 0.762 membrane. Reinforcing bars are embedded within the concrete section to provide structural integrity at the corner transition. The upper and lower portions of the assembly maintain continuous layers of insulation and waterproofing membrane along the tank interior.
CORNER DETAILS STEEL TANK INSULATION CONCRETE REINFORCING BARS LINE (0.762 MEMBRANE) LOWER UPPER
