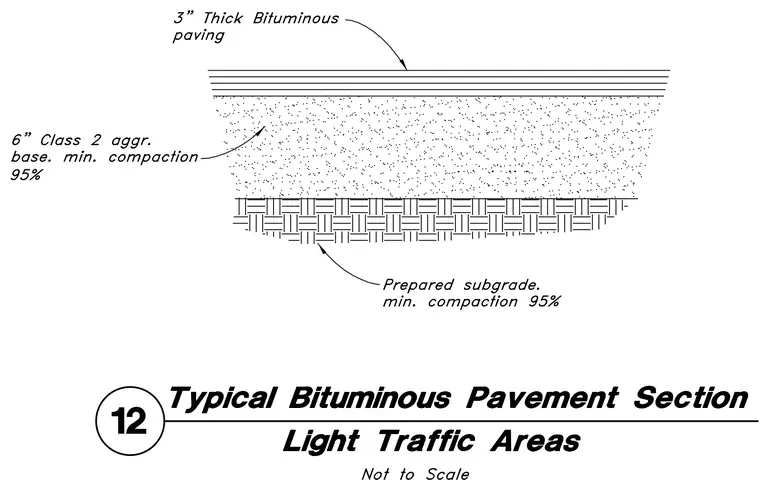

This light-traffic asphalt pavement assembly consists of a three-inch thick bituminous paving layer placed directly over a six-inch Class 2 aggregate base with a minimum compaction of ninety-five percent. The aggregate base rests upon a prepared subgrade requiring a minimum compaction of ninety-five percent.
