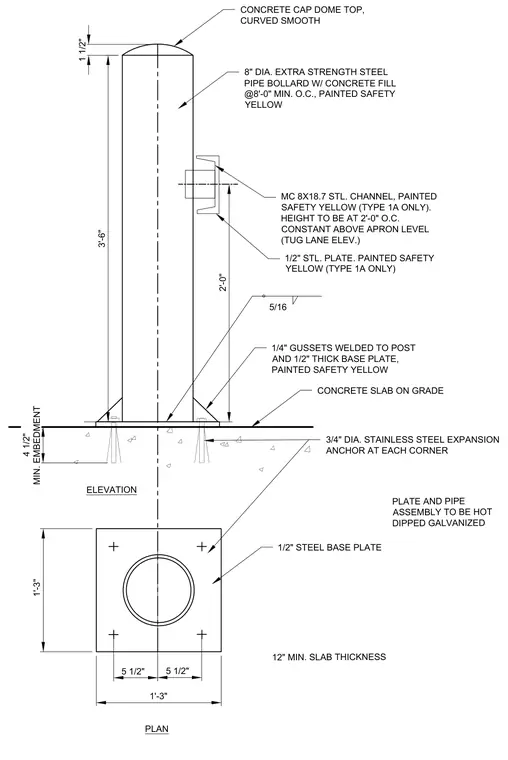

An eight-inch diameter extra strength steel pipe bollard is filled with concrete and topped with a smooth curved concrete cap. The post is welded with a five-sixteenths inch fillet weld to a one-half inch thick steel base plate, which is reinforced by four one-quarter inch gusset plates. The entire plate and pipe assembly is hot-dipped galvanized and painted safety yellow. Type 1A installations include an MC 8x18.7 steel channel welded to the post via a one-half inch steel plate. The assembly is anchored to a twelve-inch minimum concrete slab on grade using three-quarter inch diameter stainless steel expansion anchors at each corner with a four and one-half inch minimum embedment.
5 1/2" 5 1/2" ELEVATION PLAN 1'-3" 1'-3" CONCRETE CAP DOME TOP, CURVED SMOOTH 1/2" STEEL BASE PLATE 1 1/2" 3'-6" 8" DIA. EXTRA STRENGTH STEEL PIPE BOLLARD W/ CONCRETE FILL @8'-0" MIN. O.C., PAINTED SAFETY YELLOW 4 1/2" MIN. EMBEDMENT CONCRETE SLAB ON GRADE 1/4" GUSSETS WELDED TO POST AND 1/2" THICK BASE PLATE, PAINTED SAFETY YELLOW 5/16 12" MIN. SLAB THICKNESS 3/4" DIA. STAINLESS STEEL EXPANSION ANCHOR AT EACH CORNER PLATE AND PIPE ASSEMBLY TO BE HOT DIPPED GALVANIZED 1/2" STL. PLATE. PAINTED SAFETY YELLOW (TYPE 1A ONLY) MC 8X18.7 STL. CHANNEL, PAINTED SAFETY YELLOW (TYPE 1A ONLY). HEIGHT TO BE AT 2'-0" O.C. CONSTANT ABOVE APRON LEVEL (TUG LANE ELEV.) 2'-0"
