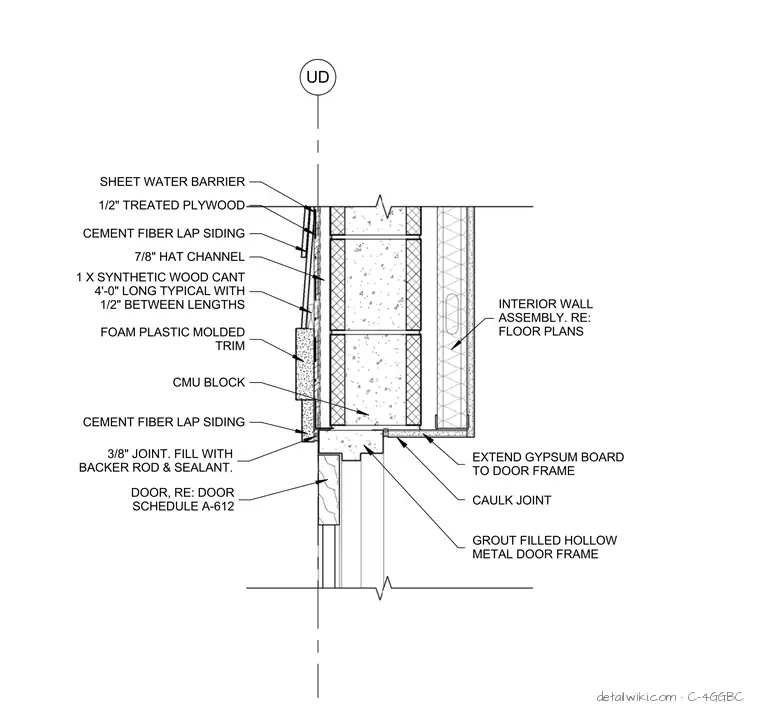

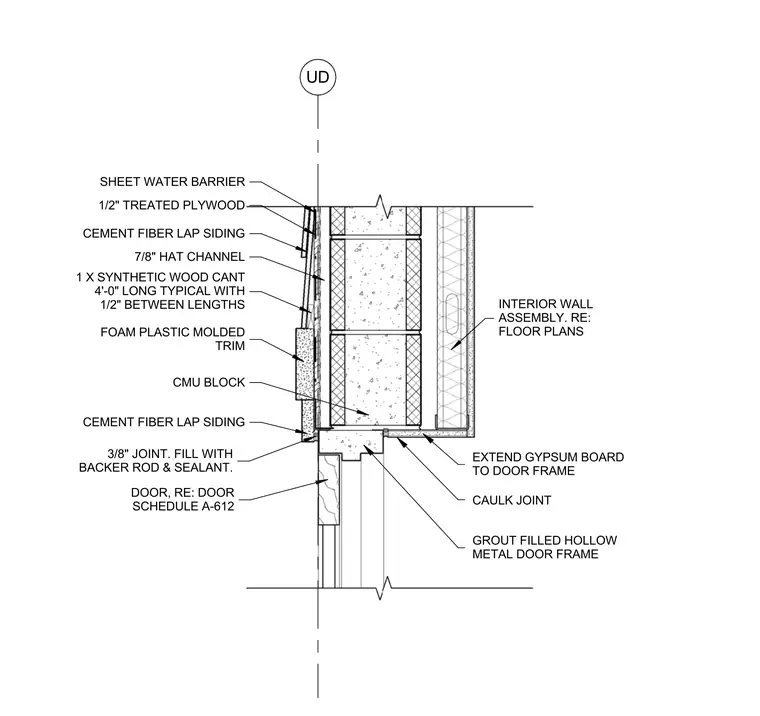

A utility door header assembly is integrated into a concrete masonry unit wall. The exterior features a sheet water barrier over one-half-inch treated plywood, finished with cement fiber lap siding over seven-eighth-inch hat channels. A one-by synthetic wood cant, four feet long typical with one-half-inch spacing between lengths, sits below a foam plastic molded trim. A three-eighth-inch joint filled with backer rod and sealant occurs at the transition to the door. The interior incorporates a grout-filled hollow metal door frame with a caulk joint, and gypsum board extended to the door frame connecting to the interior wall assembly.
CMU BLOCK DOOR, RE: DOOR SCHEDULE A-612 7/8" HAT CHANNEL CEMENT FIBER LAP SIDING UD 1/2" TREATED PLYWOOD CEMENT FIBER LAP SIDING 1 X SYNTHETIC WOOD CANT 4'-0" LONG TYPICAL WITH 1/2" BETWEEN LENGTHS SHEET WATER BARRIER 3/8" JOINT. FILL WITH BACKER ROD & SEALANT. INTERIOR WALL ASSEMBLY. RE: FLOOR PLANS EXTEND GYPSUM BOARD TO DOOR FRAME CAULK JOINT GROUT FILLED HOLLOW METAL DOOR FRAME FOAM PLASTIC MOLDED TRIM
