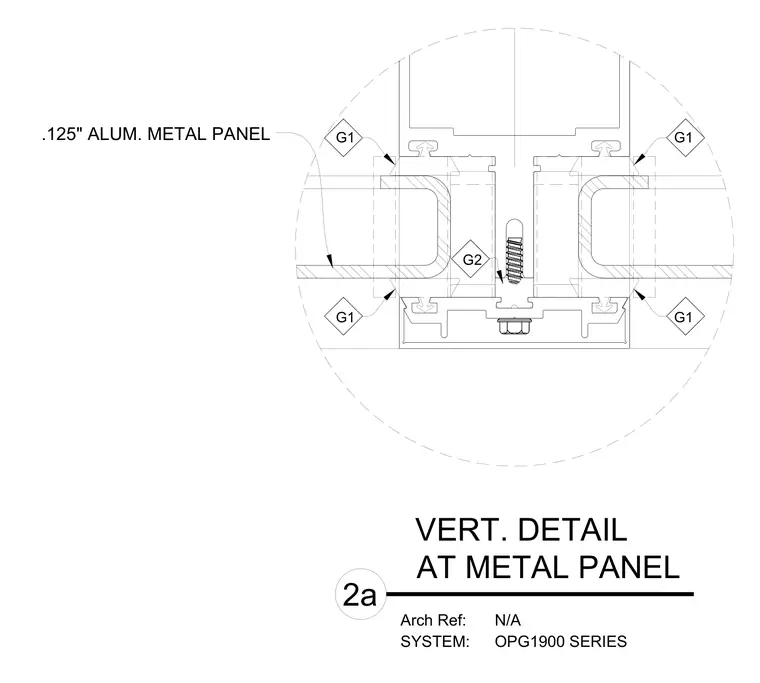

The assembly features 0.125-inch aluminum metal panels secured within the OPG1900 series aluminum extrusion framing system. Gasket or sealant details are designated by diamond callouts G1 and G2 at the panel interlocks and fasteners. The joint is anchored with a threaded fastener and mechanical clip assembly along the vertical mullion line.
G1 G1 G1 G1 G2 Arch Ref: SYSTEM: AT METAL PANEL VERT. DETAIL 2a N/A OPG1900 SERIES .125" ALUM. METAL PANEL
