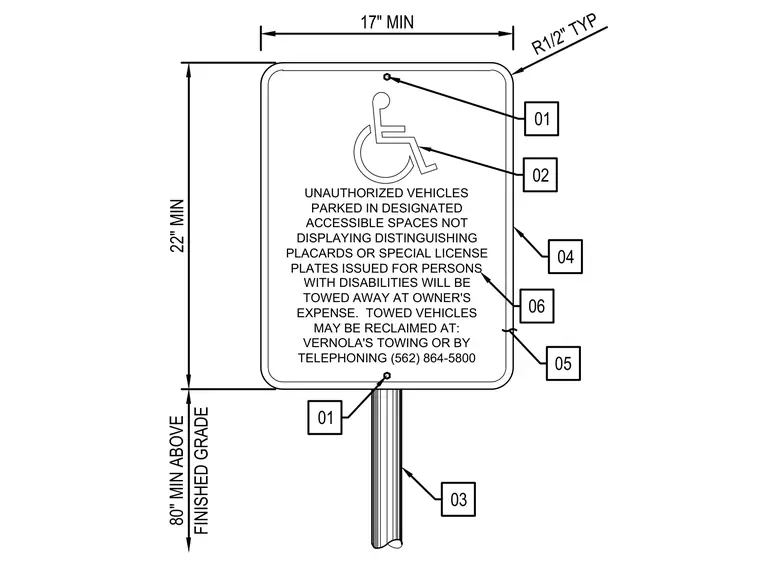

An accessible parking sign assembly specifies a minimum twenty-two inch by seventeen-inch sign panel featuring standard accessibility wording and symbols with typical one-half inch corner radii. The sign mounts on a vertical support post positioned a minimum of eighty inches above the finished grade. Numbered callouts identify fastening holes, the accessibility symbol, the support post, the panel edge, text layout, and towing information.
17" MIN 22" MIN 80" MIN ABOVE FINISHED GRADE 01 02 04 05 06 03 UNAUTHORIZED VEHICLES PARKED IN DESIGNATED ACCESSIBLE SPACES NOT DISPLAYING DISTINGUISHING PLACARDS OR SPECIAL LICENSE PLATES ISSUED FOR PERSONS WITH DISABILITIES WILL BE TOWED AWAY AT OWNER'S EXPENSE. TOWED VEHICLES MAY BE RECLAIMED AT: VERNOLA'S TOWING OR BY TELEPHONING (562) 864-5800 01 R1/2" TYP
