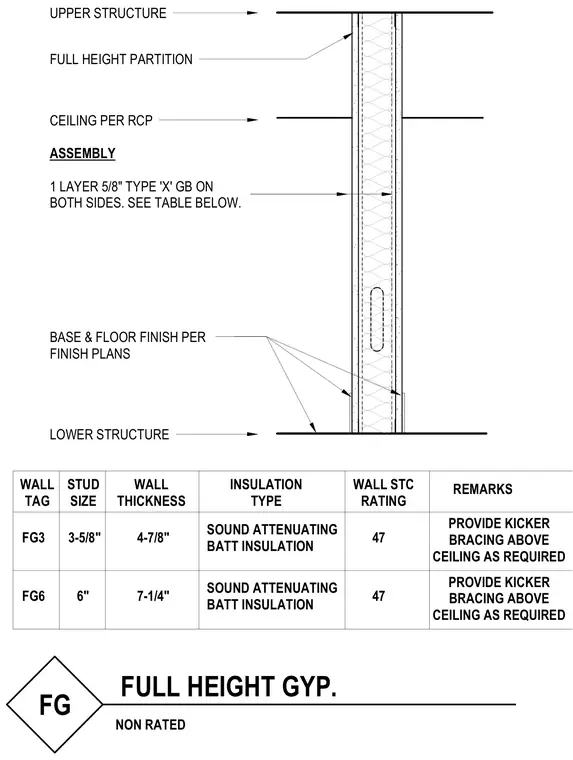

Full height non-rated gypsum partition wall spanning between the lower structure and upper structure. The assembly consists of one layer of 5/8-inch Type X gypsum board on both sides of steel studs with sound attenuating batt insulation. Wall tags FG3 and FG6 specify stud sizes of 3-5/8 inches and 6 inches with corresponding wall thicknesses of 4-7/8 inches and 7-1/4 inches, providing an STC rating of 47. Kicker bracing is provided above the ceiling as required.
FULL HEIGHT GYP. FG ASSEMBLY 1 LAYER 5/8" TYPE 'X' GB ON BOTH SIDES. SEE TABLE BELOW. UPPER STRUCTURE CEILING PER RCP BASE & FLOOR FINISH PER FINISH PLANS LOWER STRUCTURE FULL HEIGHT PARTITION NON RATED WALL THICKNESS STUD SIZE INSULATION TYPE WALL STC RATING REMARKS 4-7/8" 3-5/8" 47 7-1/4" 6" 47 SOUND ATTENUATING BATT INSULATION SOUND ATTENUATING BATT INSULATION WALL TAG FG3 FG6 PROVIDE KICKER BRACING ABOVE CEILING AS REQUIRED PROVIDE KICKER BRACING ABOVE CEILING AS REQUIRED
