Civil · C-488KM

Bollard Type 2

Materials

Concrete Steel

Elements

Columns Walls Floors / Slabs Foundations / Footings Stem Walls Site / Paving Anchors / Embeds

Connections

Embed Plate

About this detail

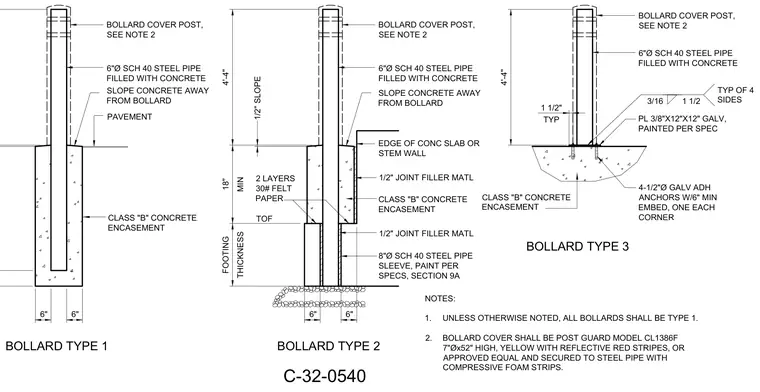

Bollard Type 1 consists of a 6-inch diameter Schedule 40 steel pipe filled with concrete and set into a Class B concrete encasement with pavement around the base. Bollard Type 2 includes an 8-inch diameter Schedule 40 steel pipe sleeve separated by two layers of 30-pound felt paper and half-inch joint filler material at the edge of a concrete slab or stem wall. Bollard Type 3 is surface-mounted on a 3/8-inch by 12-inch by 12-inch galvanized base plate secured with four half-inch diameter galvanized adhesive anchors with a 6-inch minimum embedment at each corner, welded with a three-sixteenths inch fillet weld on four sides. All bollards feature a yellow protective plastic cover secured with compressive foam strips per specifications.
