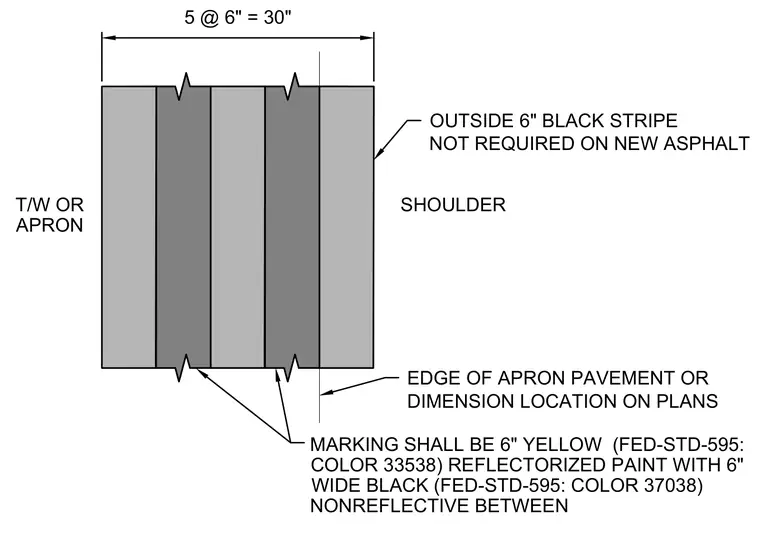

The pavement marking consists of six-inch yellow reflectorized paint specified by Federal Standard 595 color 33538, accompanied by a six-inch wide black nonreflective stripe specified by color 37038 placed between the marking and the edge of the apron pavement. An outside black stripe is omitted on new asphalt surfaces. Dimensions indicate five spaces at six inches totaling thirty inches for the total marking width relative to the apron shoulder and dimension location on plans.
T/W OR APRON SHOULDER OUTSIDE 6" BLACK STRIPE NOT REQUIRED ON NEW ASPHALT MARKING SHALL BE 6" YELLOW (FED-STD-595: COLOR 33538) REFLECTORIZED PAINT WITH 6" WIDE BLACK (FED-STD-595: COLOR 37038) NONREFLECTIVE BETWEEN EDGE OF APRON PAVEMENT OR DIMENSION LOCATION ON PLANS 5 @ 6" = 30"
